poczytaj może coś pomoże.
Throttle Position (TP) Sensor
Ford Ranger/Explorer/Mountaineer 1991-1999
Previous Next
Body & Trim Brakes Chassis Electrical Drive Train Driveability & Emissi . . . Engine & Engine Overh . . . Engine Electrical Fuel System Routine Maintenance Suspension & Steering
Driveability & Emissions Controls:
Emission Controls
Electronic Engine Controls
Electronic Engine Control (EEC)
Powertrain Control Module (PCM)
Heated Oxygen Sensors (HO2S)
Idle Air Control (IAC) Valve
Engine Coolant Temperature (ECT) Sensor
Intake Air Temperature (IAT) Sensor
Mass Air Flow (MAF) Sensor
Throttle Position (TP) Sensor
Camshaft Position (CMP) Sensor
Crankshaft Position (CKP) Sensor
Vehicle Speed Sensor (VSS)
Component Locations
Trouble Codes
Vacuum Diagrams
cDiagnostic Trouble Code Charts
Specification Charts
Buy It Here Today:
THROTTLE POSITION SENSOR
OPERATION REMOVAL & INSTALLATION
TESTING
OPERATION
See Figure 1
The Throttle Position (TP) sensor is a potentiometer that provides a signal to the PCM that is directly proportional to the throttle plate position. The TP sensor is mounted on the side of the throttle body and is connected to the throttle plate shaft. The TP sensor monitors throttle plate movement and position, and transmits an appropriate electrical signal to the PCM. These signals are used by the PCM to adjust the air/fuel mixture, spark timing and EGR operation according to engine load at idle, part throttle, or full throttle. The TPS is not adjustable.
Fig. 1: Typical Throttle Position (TP) sensor mounting on the throttle body
TESTING
See Figure 2
Disconnect the negative battery cable.
Disengage the wiring harness connector from the TP sensor.
Using a Digital Volt-Ohmmeter (DVOM) set on ohmmeter function, probe the terminals, which correspond to the Brown/White and the Gray/White connector wires, on the TP sensor. Do not measure the wiring harness connector terminals, rather the terminals on the sensor itself.
Slowly rotate the throttle shaft and monitor the ohmmeter for a continuous, steady change in resistance. Any sudden jumps, or irregularities (such as jumping back and forth) in resistance indicates a malfunctioning sensor.
Reconnect the negative battery cable.
Turn the DVOM to the voltmeter setting.
WARNING
Ensuring the DVOM is on the voltmeter function is vitally important, because if you measure circuit resistance (ohmmeter function) with the battery cable connected, your DVOM will be destroyed.
Detach the wiring harness connector from the PCM (located behind the lower right-hand kick panel in the passengers' compartment), then install a break-out box between the wiring harness connector and the PCM connector.
Turn the ignition switch ON and using the DVOM on voltmeter function, measure the voltage between terminals 89 and 90 of the breakout box. The specification is 0.9 volts.
If the voltage is outside the standard value or if it does not change smoothly, inspect the circuit wiring and/or replace the TP sensor.

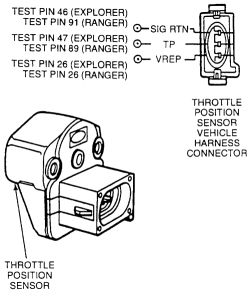

Fig. 2: TP sensor wire harness connections
REMOVAL & INSTALLATION
See Figures 3 through 6
Disconnect the negative battery cable.
Fig. 3: To remove the TP sensor, first disconnect the wire harness plug from the sensor
Fig. 4: If the mounting holes of the sensor are slotted, mark its position. Note: factory sensors are not slotted
Disengage the wiring harness connector from the TP sensor.
Remove the two TP sensor mounting screws, then pull the TP sensor out of the throttle body housing.
Fig. 5: Remove the two attaching screws ...
Fig. 6: ... then remove the sensor from the throttle body by lifting straight up to disengage the throttle blade (arrow)
To install:
Position the TP sensor against the throttle body housing, ensuring that the mounting screw holes are aligned. When positioning the TP sensor against the throttle body, slide the sensor straight onto the housing.
Install and tighten the sensor mounting screws until snug.
Attach the wiring harness connector to the sensor, then connect the negative battery cable.
The TP sensor is not adjustable
-
